5.6

Score

TCL 505

Release Date
6-Feb-24
Compare

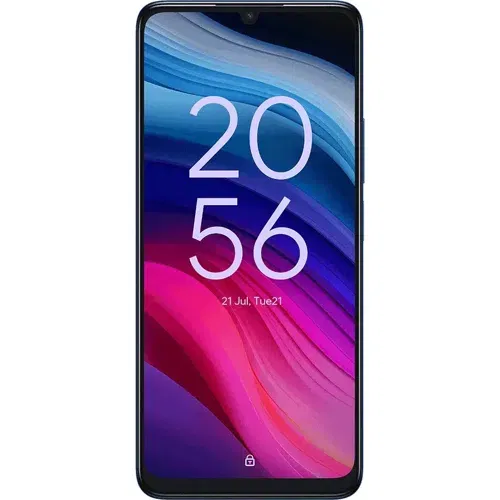

TCL 505 Front
6.75 inches
260 ppi, IPS LCD
Octa core
MediaTek Helio G36
5010 mAh
Li-Polymer
50 MP
Dual, 50MP + 2MP
4G
Dual SIM, GSM+GSM
Fingerprint
Side

Detailed Specs

Compare

Announced On

6-Feb-24

Market Status

Launched Globally

Brand

TCL

Price Status

Expected

Price

Rs. 9,990

Screen Size

6.75 inches

Screen Type

IPS LCD

Screen Resolution

720 x 1600 pixels

Pixel Density

260 ppi

Aspect Ratio

20:09

Screen to Body Ratio

90.08%

Screen Design

Waterdrop notch

Screen Refresh Rate

90 Hz

Screen Quality

HD

Peak Brightness

400 nits

Rear Flash

Yes, LED Flash

Rear Video Recording

1920x1080 @ 30 fps

Rear Camera Features

Auto Flash, Face detection, Touch to focus

Rear Camera Setup

Dual, 50MP + 2MP

Rear Camera 1 Resolution

50 MP

Rear Camera 1 Type

f/1.8, Wide Angle (79 degree field-of-view), Primary Camera

Rear Camera 1 Lens

2.55" sensor size, 0.7 micrometre pixel size

Rear Camera 2 Resolution

2 MP

Rear Camera 2 Type

f/2.4, Depth Camera

Rear Camera 2 Lens

5.0" sensor size, 1.75 micrometre pixel size

Rear Aperture

f/1.8

Front Video Recording

1920x1080 @ 30 fps

Front Camera Setup

Single, 5MP

Front Camera 1 Resolution

5 MP

Front Camera 1 Type

f/2.2, Primary Camera

Front Camera 1 Lens

1.12 micrometre pixel size

Front Aperture

f/2.2

Phone Variants

4GB 128GB

Expandable Storage

Yes

Expandable Storage Capacity

Yes, 512 GB

OTG Support

Yes

GPU

PowerVR GE8320

Operating System

Android v14

Chipset

MediaTek Helio G36

CPU

Octa core (2.2 GHz, Quad core, Cortex A53 + 1.6 GHz, Quad core, Cortex A53)

Clock Speed

2.2 GHz

Architecture

64 bit

Process Technology

12 nm

Weight

190 grams

Colors

Ocean Blue, Space Grey

Dimensions

168.29 x 76.67 x 8.32 mm

Battery Capacity

5010 mAh

Battery Removable

No

Battery Type

Li-Polymer

USB Type-C

Yes

GPS

Yes A-GPS, Glonass

NFC

Yes

Network Support

4G

Bluetooth

Yes

3.5mm Audio Jack

Yes

SIM Size

SIM1: Nano, SIM2: Nano

Wi-Fi

Yes, Wi-Fi 5 (802.11 a/b/g/n/ac) 5GHz

Bluetooth Type

v5.1

Audio Jack

3.5 mm

SIM Slot(s)

Dual SIM, GSM+GSM

eSIM

No

Wi-Fi Features

Wi-Fi Direct, Mobile Hotspot

VoLTE

Yes

SIM 1 Bands

4G Bands: TD-LTE 2600(band 38) / 2300(band 40) / 2500(band 41), FD-LTE 2100(band 1) / 1800(band 3) / 2600(band 7) / 900(band 8) / 700(band 28) / 850(band 5) / 800(band 20) / 850(band 26), 3G Bands: UMTS 1900 / 2100 / 850 / 900 MHz, 2G Bands: GSM 1800...

SIM 2 Bands

4G Bands: TD-LTE 2600(band 38) / 2300(band 40) / 2500(band 41), FD-LTE 2100(band 1) / 1800(band 3) / 2600(band 7) / 900(band 8) / 700(band 28) / 850(band 5) / 800(band 20) / 850(band 26), 3G Bands: UMTS 1900 / 2100 / 850 / 900 MHz, 2G Bands: GSM 1800...

Fingerprint Scanner

Yes

Fingerprint Scanner Position

Side

Sensors

Light sensor, Proximity sensor, Accelerometer
