6.8

Score

Samsung Galaxy Note Fan Edition

Release Date
5-Jul-17
Compare

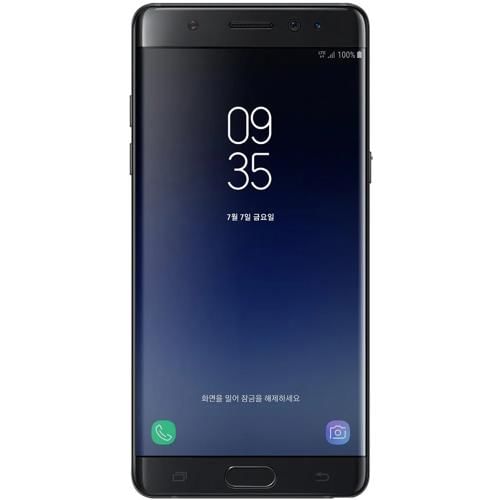

Samsung Galaxy Note Fan Edition Front
5.7 inches
515 ppi, Super AMOLED
Octa core
Samsung Exynos 8 Octa 8890
3500 mAh
Li-Polymer, Fast Charging
12 MP
Single, 12MP
4G
Single SIM, GSM
Fingerprint

Detailed Specs

Compare

Announced On

5-Jul-17

Market Status

Discontinued

Brand

Samsung

Price Status

Confirmed

Price

Rs. 39,990

Screen Size

5.7 inches

Screen Type

Super AMOLED

Screen Resolution

1440 x 2560 pixels

Pixel Density

515 ppi

Screen Protection

Gorilla Glass 5

Screen to Body Ratio

78.78%

Screen Quality

2K

OIS

Yes

Rear Flash

Yes, LED Flash

Rear Video Recording

3840x2160 @ 30 fps, 1920x1080 @ 60 fps, 1280x720 @ 120 fps

Rear Camera Features

Digital Zoom, Auto Flash, Face detection, Touch to focus

Rear Camera Setup

Single, 12MP

Rear Camera 1 Resolution

12 MP

Rear Camera 1 Type

f/1.7 Primary Camera

Rear Sensor

Exmor-RS CMOS Sensor

Rear Aperture

f/1.7

Front Camera Features

Dual video call, Auto-HDR

Front Camera Setup

Single, 5MP

Front Camera 1 Resolution

5 MP

Front Camera 1 Type

f/1.7 Primary Camera

Front Aperture

f/1.7

Front Flash

No

Phone Variants

4GB 64GB

Expandable Storage

Yes

RAM Type

LPDDR4

Expandable Storage Capacity

Yes, 256 GB

GPU

Mali-T880 MP12

Operating System

Android v6.0.1 (Marshmallow)

Chipset

Samsung Exynos 8 Octa 8890

CPU

Octa core (2.3 GHz, Quad core, M1 Mongoose + 1.6 GHz, Quad core, Cortex A53)

Clock Speed

2.3 GHz

Architecture

64 bit

Water Resistance

Yes, Water resistant, IP68

Weight

169 grams

Colors

Gold Platinum, Silver Titanium, Black Onyx

Build

Case: Metal, Back: Metal

Dimensions

153.5 x 73.9 x 7.9 mm

Battery Capacity

3500 mAh

Battery Removable

No

Battery Type

Li-Polymer

Charger Type

Fast

USB Type-C

Yes

Fast Charging

Yes

Wireless Charging

Yes

GPS

Yes A-GPS, Glonass

Audio Features

24-bit/192kHz audioActive noise cancellation with dedicated mic

NFC

Yes

Network Support

4G

Bluetooth

Yes

FM Radio

No

3.5mm Audio Jack

Yes

SIM Size

SIM1: Nano

Wi-Fi

Yes, Wi-Fi 802.11, a/ac/b/g/n/n 5GHz

Bluetooth Type

v4.2

Audio Jack

3.5 mm

SIM Slot(s)

Single SIM, GSM

eSIM

No

Wi-Fi Features

Wi-Fi Direct, Mobile Hotspot

SIM 1 Bands

4G Bands: TD-LTE 2300(band 40), FD-LTE 1800(band 3), 3G Bands: UMTS 1700 / 1900 / 2100 / 850 / 900 MHz, 2G Bands: GSM 1800 / 1900 / 850 / 900 MHz, GPRS: Available, EDGE: Available...

Fingerprint Scanner

Yes

Sensors

Light sensor, Proximity sensor, Accelerometer, Barometer, Compass, Gyroscope
